• High foot

• Brass insert

• 0.5-16mm² wire range

• Polyamide 6/6 94V-2 grade

• Available with or without wire protection

• Temperature

        working -40^oC to 100^oC

        short time 140^oC

• Natural color as standard

Size Chart...

Details...

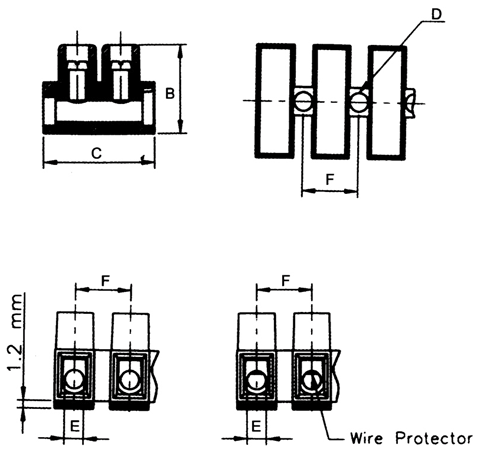

	Model   m㎡   Amp   Volt   Screw   Dimensions Packing   Unit A B C D E F CA10HT 4 10 450 M3X6 （mm） 116.5 20.2 20 3.5 3.45 10 50PCS/BOX 10boxes/carton CA10HTWP 4 10 450 M3X6 （mm） 116.5 20.2 20 3.5 3.45 10
